PRODUCT NAME : H20 Beams

The HT20 Beam has a high load capacity throughout their length, is easy to handle and quick to assemble. It has a minimum weight to load capacity ratio making it ideal form formwork. Beams is produced in various standard lengths and has a solid plastic cap prevents premature chipping on the chord ends.  Moreover, the superior quality solid wood chords combined with triple laminated solid wood webs guarantee above-average durability. Supports can be placed between beams at any point and can be used in any kind of formwork.

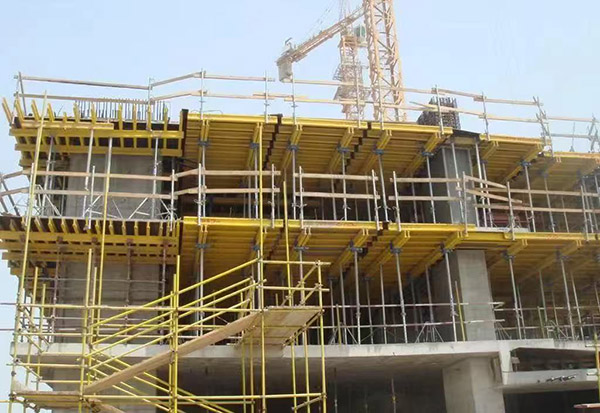

Areas of application:d

Ceiling formworks
Wall formworks
Bridge formworks
Tunnel formworks
Special formworks
Scaffolding
Working platforms

Product Specifications

Wood types - Spruce / Fir
Beam height - 20 cm
Lengths - 2,45 / 2,90 / 3,30 / 3,60 / 3,90 / 4,50 / 4,90 / 5,90 m
Weight - 4,6 kg per meter
Dimensions - Beam height 200 mm
Chord height 40 mm
Chord width 80 mm
Thickness 26,8 mm
